– adjustable rotation speed and time
– adjustable to different jar sizes

BL-X
BL – Roller bench
X – 1, 3, 6, 8 Max. number of jars on rubber rollers

– for laboratory or small production volume
– casting on PET or other carrier
– casting speed control
– gravity slurry feeding
– tape winding

CAM-L25xxxx(xxx)
CAM – Casting machine
L – Laboratory type
25 – 25 only – max. PET film width in cm
x – Dryer length 2, 3, 4 (m)
x – Top heating (T)
x – Bottom heating (B)
x – Ionizer device (I)
x – Slurry supply automatic (S)
x – Exhaust flow measurement (E)
x – Rotating casting wheel (R)

– compact size requiring minimum floor size
– suitable for solvent and water based systems
– high accuracy in thickness control
– automatic tracking of carrier film
– automatic slurry feeding
– applicable for up to 150 micron tape thickness

CAM-C35xx
CAM – Casting machine
C – Compact type
35 – max. PET film width in cm
x – for base model without touch screen and automatic blade gap setting
x – for 2 m longer dying section

– thickness 5-500 microns (0.2 – 2 mils)
– advanced drying regimes possible
– high accuracy in thickness control
– automatic tracking of carrier film
– automatic slurry feeding

CAM-Hxxx
CAM – Casting machine
H – Horizontal type
xx – 35, 45 or 60 – max. PET film width in cm
x – Drier length: 6 – 20 (m) (in 3m steps)

– suitable for price sensitive applications
– different drying regimes
– high accuracy doctor blade
– automatic tracking of steel belt
– automatic slurry feeding
– tape winding

CAM-S x x
CAM – Casting machine
S – Stainless steel belt type
x – 30 or 60 – max. steel belt width in cm
x – Drier length 5 (7, 9, 11)(m)

– blanks single sheets from a roll of green tape
– suitable for freestanding or Mylar based tapes
– trims sheet edges
– punch registration holes (option)
– transfers blanked sheets to a magazine
– sorting blanked sheets option (Vision, thickness)

SC-35xxx
SC – Sheet cutter
35 – 35 max. – Tape width in cm
x – M for tape on Mylar F for freestanding tape
x – N – without registration punching P- with punch tool
x – T- sheet to tray C- sheet to magazine (cassette)

– punch holes for vias and registration in green tape
– punch cavity rectangle or square holes
– manual, CAD, NcDrill and DXF file input
– tool breakage detection
– automatic sheets re-alignment
– vision inspection option

PAM-xxx
PAM – Punching machine
x – Number of tool position (4 or 8) Tools have to be specified separately
x – S- single pin punching tools type
M- multiple pins punching tool
x – Tape handling – manual M
– magazine to magazine CC
– reel feeder to magazine RC

– drills or cuts holes vias or registration holes in green tape by laser
– cut rectangled or any cavity shape
– CAD, NcDrill and DXF file input
– three laser types available (IR, green, UV)
– vision inspection option

LM-xxx
LM – Laser drilling and cutting machine
x – Sheet size in inch (4,6,8,10)
x – U- UV laser G- green laser I- IR -laser
x – Tape handling – manual M
– magazine to magazine CC
– reel feeder to magazine RC

– Economical, production proven manual screen printers
– Programmable printing parameters
– Print/print, print/flood, flood/print, on contact print, stencil printing, via filling
– Extensive options available

P-xxx
P – Printer
x – Printer size 200 or 400
x – S – standard model A – advanced model
x – VF (via filling) or TH (trough hole) metalisation option

– Newly developed screen printers
– Fully programmable printing parameters, no mechanical settings needed
– Print/print, print/flood, flood/print, on contact print, stencil printing, via filling
– Printing areas up to 250x250mm or 450x450mm
– Automatic versions standard included

P-xxx
P – Printer
x – Printer size 250 or 450
x – S – standard model A – advanced model
x – VF (via filling) or TH (trough hole) metalisation option

– Automatic sheet handling, printing, drying process
– Two models available to meet al requirements
– Fully programmable printing parameters
– Print/print, print/flood, flood/print, on contact print, stencil printing, via filling and screen cleaning
– Extensive options for demanding advanced technology applications

P-250xAMx
P – Printer
250 – Printing size 250
x – S – standard model A – advanced model
AM – Automatic Manipulation
x – Sheets on T -trays (no drier)

– Unwinding tape from roll, printing, drying, winding
– High productivity
– Up to two printers with automatic alignment possible
– Print vision inspection option available
– Fully automatic run
– Most suitable for products like: MLCC, MLCV,
fuel cells, printed electronics, etc.

RTP-25 x x
RTP – Roll to roll printe
25 – Web with 25cm (other widths available)
x – Drier length (m)
x – V – Vision print inspection

– drying sheets, substrates, wafers, hybrids
– different designs for different purposes
– SD – type, convection drier, high air flow, temperatures up to 120 deg.C
– SDI – type, for thick film pastes drying regimes (ceramic IR heaters + hot air)
– DIR – fast IR drier (IR lamps installed)
– height adapted to Keko screen printers
– custom designs available

DIR
SDI
SD-XX X
SD – Dryer
XX – Belt width 35, 45 (cm)
X – Dryer length 1,2,3 (m)

– Makes cover sheets directly onto carrying palette or paper from a roll of tape
– Glues the cover sheet to custom carrying palette
– Sheet blanker and taking press in one unit

CSM-xxx
CSM – Cover Sheet Maker
x – Foil width: 35 cm max
x – Foil type: F – Freestanding M – Mylar
x – C – cassettes for carriers

– Simple manual stacker (taking times up to 1minute)
– SMP type has uniaxial lamination possibility, SMP type replaces previous TPR press SMP pressing time up to 99minutes
– Registration can be done by registration pins
– High pressing force up to 70 tons
– Option: Programmable pressing curve

SM-xxx
SM – Stacker SM or SMP type
x – Sheet size: 4, 6, 8 inch
x – – no registration P – pin registration
x – Pressing force: L – low up to 200 kN M – medium up to 420 kN H – high up to 700kN

– Manual or automatic stacker for low to high volume LTCC, HTCC or other similar component production
– Suitable for tapes with or without carrier film
– Process on vacuum plate or carrier block
– Possible to start building stack from top or from bottom
– Vacuum press for bubbling sensitive foils
– SWU type is suitable for more demanding production requirements and has more options available compare to SW type

SW-xxxxx
SW – Stacker – SW or SWU type
x – Sheet size: 6, 8 inch
x – Sheet loading: M – Manual A – Automatic from cassette
x – Sheet alignment: P – Pin V – Vision
x – Pressing force: L – Low up to 200 kN H – High up to 420 kN
x – V – Vacuum press

– Automatic sheet loading from cassettes
– Stacking on to carrier palette or vacuum
– Automatically removes carrier film first, than stacks
– Sheet pre-registration
– Automatic vision alignment
– Suitable also for very high layer count (MLCC, piezo)
– Not suitable for tapes with punched holes

ST-xxxx
ST – Stacker ST type
x – Sheet size: 6, 8 inch
x – Sheet loading: M – Manual A – Automatic
x – V – vision alignment P -pin alignment
x – P – Carrier plates auto loading C – cavity for high stack without pressing possibility

– Automatic sheet loading from cassettes
– Carrier palettes automatic loading / unloading
– Pressing first than removing carrier film
– Pre-registration
– Automatic vision alignment
– Suitable for high volume production
– Suitable for various components (up to 50 layers stack), especially MLCI

SB- xxx
SB – Stacker
x – Sheet size: 6, 8 inch
x – Sheet loading: M – Manual A – Automatic
x – V – vision alignment P – pin alignment

– Universal system for components up to 100 layers
– High productivity = low cost per component
– Suitable for smallest components size
– Uses carrier film tapes, freestanding tapes
and individual sheets
– Special configurations like: -several printers
-several driers
-sheet vision alignment
-other special requirements

PAL- xxx
PAL – Printing And Laminating System
x – Sheet size: 6, 8 inch
x – 1, 2, 3 Number of printers
x – M – Mylar feeder F – Free standing tape feeder S – Sheet loading

-Lamination in a cavity
-High stack lamination possibility
-Simplified versions available
-Rigid, compact design takes little floor space

TPC-xx
TPC – Thermal Press-pressing in a cavity
x – Max. bar size in inch: 4 or 6
x – Pressing force: L – low up to 400kN H – high up to 700 kN

-Up to 40 stacks/substrates laminated simultaneously
-Wide selection range of bar size
-Easy to operate, quick product turn-around time
-Rigid, compact design takes little floor space
-Stores up to 99 pressure programs

ILS-xxx
ILS – Isostatic laminator
x – Max. bar size in inch: 4 or 6 or 10 or 12 or 18
x – Max. pressure 6 for 6000PSI (42Mpa) 10 for 10000PSI (70Mpa)
x – D in case of double chamber length (for ILS-6 only)

– Cuts the most difficult high thickness green Ceramic Ware
– Automatically positions knife with high accuracy
– Automatically finds cutting markers
– Adjustable speed and cutting depth
– High productivity due to high cutting speed

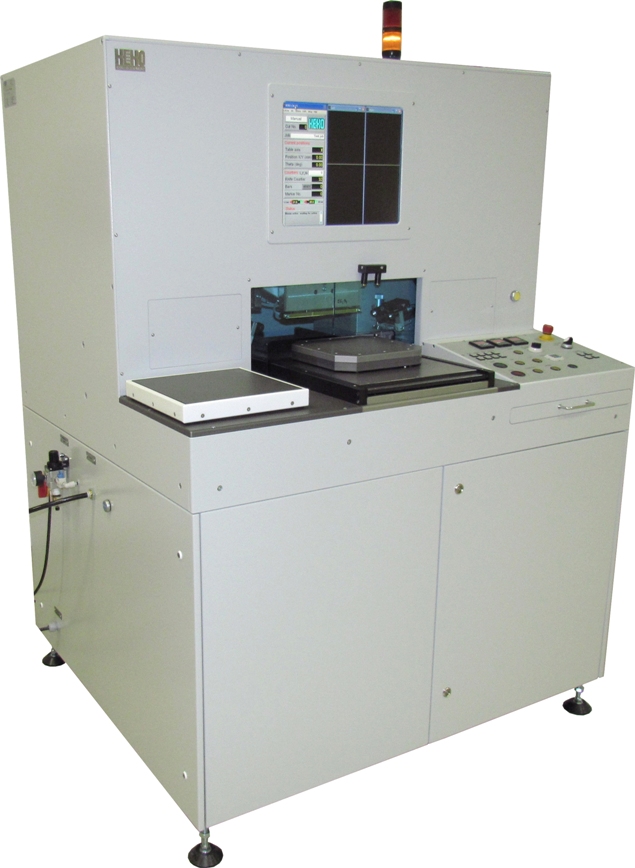

CM-15xx
CM-15 – Cutting Machine
x – bar size: 4, 6, 8, 10 inch
x – A – Auto bar handling from/to cassette M- Manual machine without auto vision alignment

– Simple, flexible and accurate
– Bar Edge trimming and splitting possibility
– Laser pointers installed for precise block positioning

ET-xx
ET – Edge Cutter/trimmer
x – bar size: 4, 6, 8, 10 inch
x – E – edge trimming only A – edge trimming & bar splitting function

– Cuts any shape out of green ceramic
– Up to 10 x 10 inches machining area
– Automatically positions bar by vision system
– DXF file conversion
– Vacuum product fixing
– Automatic tool changer (8 tools)

CNC – 10V

– Fully programmable dipping conditions ensures accurate and excellent termination
– Simple programming, more than 50 dipping programs can be stored
– Truth chip leveling mode ensure uniform dipping height
– High speed, high accuracy servo motors positioning
– Easy cleaning features

DM – 6
DM – Dipping machine

– Designed for inspecting green ceramic sheets prints and punched holes
– Inspect wet and dry prints, via holes
– High inspection resolution
– Detects shorts, opens, neck downs, mouse bites, screen stretch screen misalignment, contamination
– Inline or offline version available

KVI- X
KVI – KEKO vision inspection
X – 6 or 8 inspected area in inches

– For vacuum supply
– Consist of: vacuum pump, reservoir, electrical control with vacuum level switch switching pump on / off, vacuum filter

VP – X
VP – Vacuum Pump
X – 300 Suction capacity 1000 1600
Suitable to connect one to several machines requiring vacuum connection.

Based on experiences and cooperation with institutes in field of material and technology development, Keko Equipment new strategy is offering complete solutions for multilayer ceramic products, including compatible materials, technology and machines.
Please contact KEKO-HaikuTech-Neotronics for particular solution.

One of Keko Equipment strongest part is custom designed equipment basted on custom requirements and their long term designing and machines production experiences.
Many customers are satisfied with their innovative solutions adapted to their needs.
Experienced production team is guaranty for quality and success.
Contact us, if you are looking for custom solution, which you can not find on the market.
